Tunnel Structure

A perfect structure to help your growing

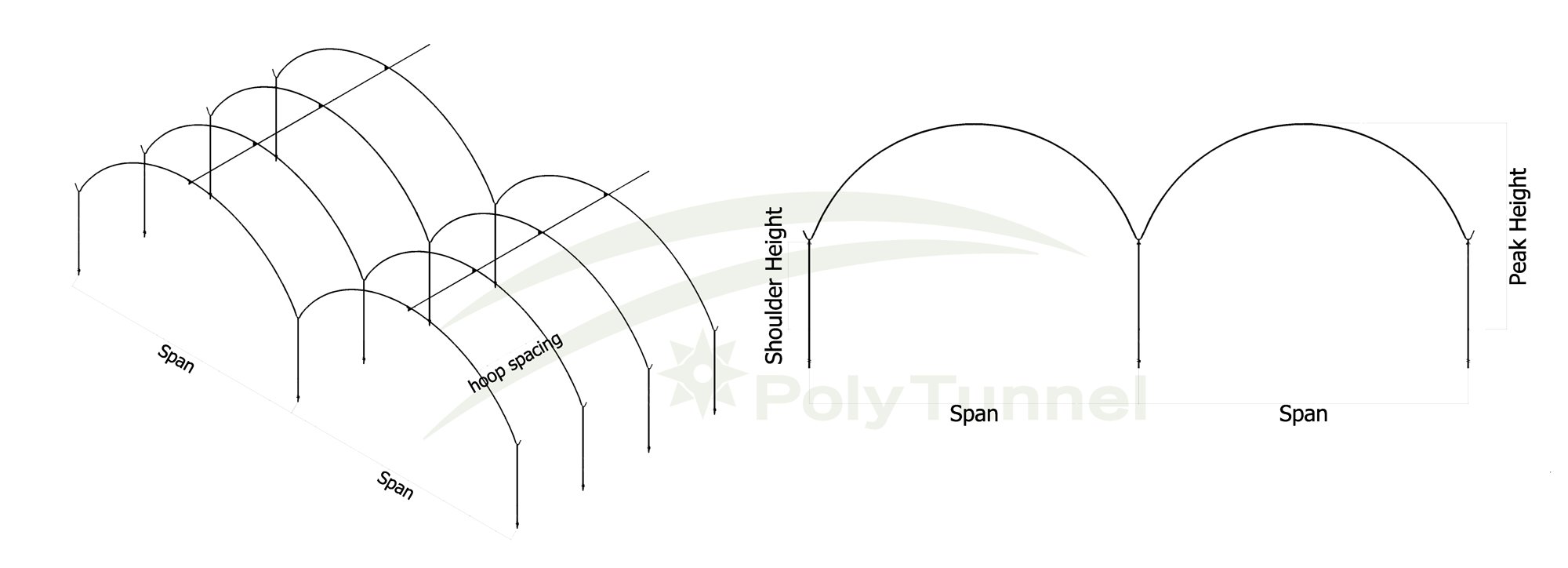

Key Dimension

    ● Span: Standard 8m/8.5m/9m/9.5m/10m/10.5m.
    ● Hoop Spacing: Standard 2.2m/2.5m/2.8m/3.0m.
    ● Shoulder Height: Standard 1.6m/1.8m/2.0m/2.2m.
    ● Peak Height: 4.0m/4.5m/5.0m.
    ● All other dimensions can be tailor made.

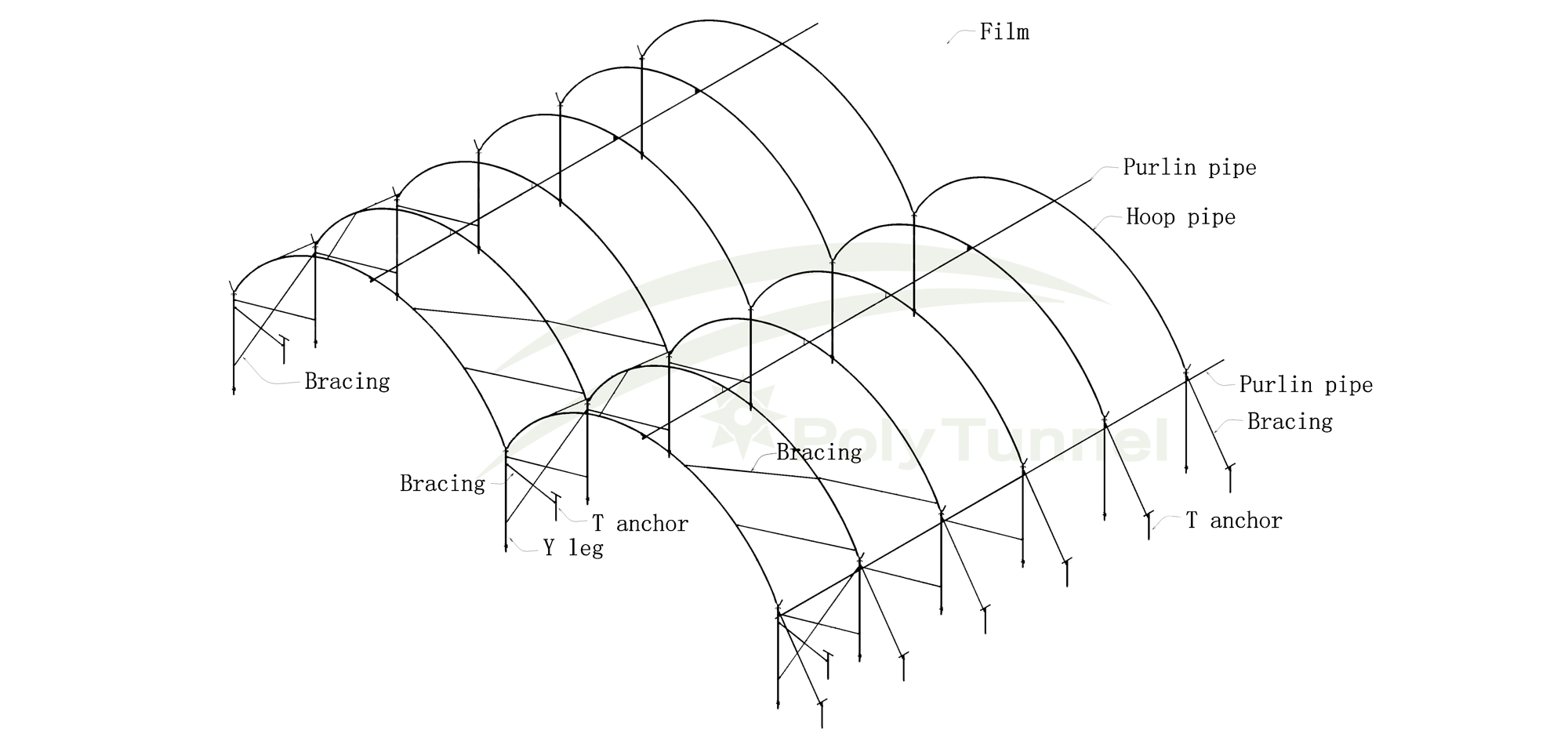

Material Specification

    ● Y Leg: 40*2.0mm/48*2.0mm.
    ● Hoop Pipe: 32*1.5mm/40*1.5mm/50*1.2mm/50*1.5mm.
    ● Bracing: 32*1.5mm/35*1.5mm/40*1.5mm.
    ● Film: 120um-180um functional.
    ● All other dimensions can be tailor made.
